Bustype: Frontmotorbus

Volvo Bussar AB, Borås/Göteborg (S)

Type:

BB57-50

Årgang 1970 - 1983

Type:

BB57-55

Årgang 1970 - 1983

Type:

BB57-60

Årgang 1970 - 1983

Type:

BB57-65

Årgang 1970 - 1983

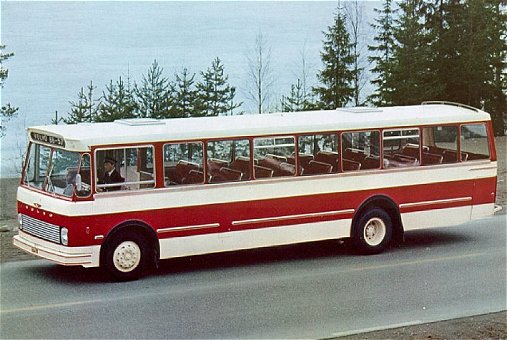

Volvo BB57 - VBK 42 (reklameprospekt).
foto: Volvo Bussar AB ©



Volvo BB57 was a simple front-engined single-deck bus design built by Volvo between 1970 and 1983. It was equipped with the Volvo TD70-series engine.

Like its couisin, the Volvo B57, the BB57 could be built in 4 different wheelbase lengths: 5 metres (B57-50), 5.5 metres (B57-55), 6 metres (B57-60) and 6.5 metres (B57-65).

This vehicle was rare in Europe, but very popular in particular in Third World countries.

Volvo Logo





Tekniske Data:      Volvo BB57 - produktion: ?? stk.

Årgang:

 1970 - 1983

Chassisnr.:

 -

Motor:

 Volvo Diesel TD70E (alternativt D70)(6-Cyl. frontmotor)

Ydelse:

 210 HK (v/ 2.400 O/min.) ?? Nm

Gear:

 Manuel fuldsynkroniseret Volvo K191 5+1 gearkasse.  Alternativt halvautomatisk Wilson GB346/356 4/5+1  gearkasse.

Topfart:

 80 km/t.*

Passagertal:

 ?? siddende og ?? stående passagerer.*

Længde:

 9.450 mm**/9.950 mm***/10.450 mm****

Bredde:

 2.500 * mm

Højde:

 - * mm (afhængig af karrosserimodel)

Akselafstand:

 5.000 mm (BB57-50**), 5.500 mm (BB57-55***)
 6.000 mm (BB57-60****), 6.500 mm (BB57-65)
.

Vendediameter:

 16,7 m**/18,3 m***/24 m****

Egenvægt:

 4.550**/4.580***/4.605**** kg

Totalvægt:

 14.000 - 15.000* kg

Bremser:

 - 2-kreds trykluft -

Dækstørrelse:

 10.00-20

  * = afhængig af specifikationer.
** = BB57-50, *** = BB57-55, **** = BB57-60.
