Bustype: Lavtgulvsbybus

Volvo Bussar AB, Borås/Göteborg (S)/(A)/(GB)

Type:

B9L

Årgang 2005 - 20??

Type:

B9LA (ledbus)

Årgang 2005 - 20??

Type:

B9TL (dobbeltdækkerbus)

Årgang 2002 - 20??

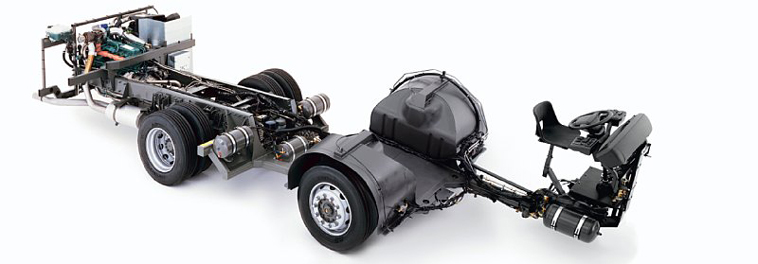

Volvo B9TL chassis

Foto: Volvo BB9TL chassis
  Volvo Bus AB ©

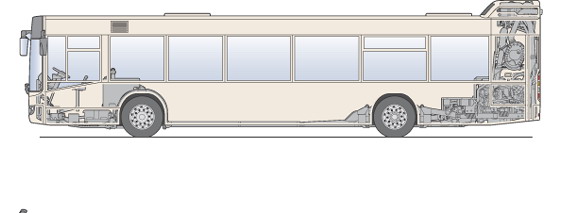

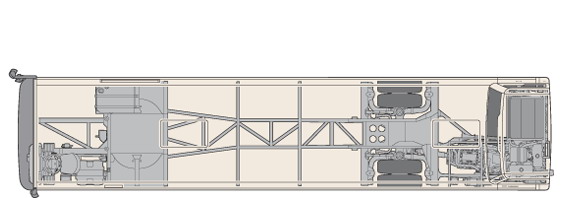

The Volvo B9L is a low floor city bus with quality and reliability standards placing it in the absolute elite. A low, flat floor offering generous standing space permits swift passenger movement and cuts standstill times at bus stops. A new, highly efficient engine optimised for city traffic and a low-weight chassis ensure that fuel consumption and exhaust emissions stay low. Modern electronics promote considerable reliability and flexibility, offering the operator new potential for maintaining a clear overview of operating costs.

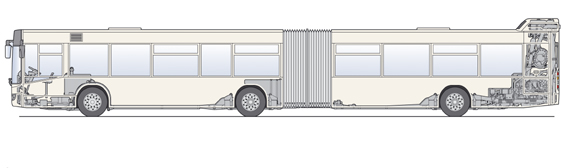

The low-floor Volvo B9LA Articulated city bus combines extremely high passenger capacity and comfort with excellent transport economy. A low, flat floor throughout the bus and a low boarding height promote rapid and convenient passenger flow on board. The Volvo B9L articulated offers considerable freedom with regard to layout and interior design. A new 9-litre engine optimised for city operation offers generous torque and combines swift acceleration with low fuel consumption and low exhaust emissions.

The latest generation of Volvo’s double-decker chassis - Volvo B9TL - is particularly well adapted for efficient and environmentally optimised city operations with demands on high capacity. Our powerful, fuelefficient 9-litre engine and all-new matching automatic transmission mean the Volvo B9TL is optimised for fast and economic operations involving frequent stop-go traffic. The engine is certified for the new Euro 4 emissions requirements, which means even lower exhaust emissions than ever before. The Volvo B9TL is available with or without a bogie axle, and both variants are built for a long and profitable life in the city. For the benefit of passengers, operators and the environment.(kilde: Volvo Bus AB)

Volvo Logo

Volvo B9L





Tekniske Data:    Volvo B9L - B9LA - B9TL

Årgang:

 2002(2005) - 20??

Chassisnr.:

 -

Motor:

 Volvo hækmotor,  6-cylindre, 9-liter diesel el. gas

Ydelse:

 D9B260 (191 kW/1100 Nm)**, G9A260 (191 kW), D9B310 (228  kW/1400 Nm)**, D9B360  (265 kW), G9A300 (221 kW).

Katalysator:

 Volvo Oxidising catalytic converter.

Emissionsklasse:

 Euro 4/Euro 5 incentive.

Partikelfilter:

 Ja (option)*

Gear:

 4- eller 6-trins automatgear.

Topfart:

 ?? km/t.*

Passagertal:

 ?? siddende og ?? stående passagerer.*

Længde:

 - * mm

Bredde:

 - * mm

Gulvhøjde:

 340 mm ved for- & midtdøre, 345 mm bag bagakslen. - kan  sænkes yderligere 90 mm med "knæle"- funktion (option)*

Højde:

 - * mm

Akselafstand:

 - * mm

Vendediameter:

 - * m

Totalvægt:

 To-akslede busser 18.900 kg*
 Tre-akslede busser 28.000 kg*

Affjedring:

 Elektronisk kontrolleret luftaffjedring. Uafhængigt  forhjulsophæng.

Bremser:

 Skivebremser. ABS med ASR + ESP (option)*,  Automatgear  har integreret retarder som standard.

   * = afhængig af specifikationer.
   ** - Volvo B9TL
