Bustype: Midtmotorbus

Volvo Bussar AB, Borås/Göteborg (S)

Type:

B58-50

Årgang 1966 - 1980

Type:

B58-55

Årgang 1966 - 1980

Type:

B58-60

Årgang 1966 - 1980

Type:

B58-61

Årgang 1966 - 1980

Type:

B58-65

Årgang 1966 - 1980

Type:

B58 "Hägglund ledbus"

Årgang 1966 - 19??

Type:

B58 "Volvo ledbus"

Årgang 1966 - 19??

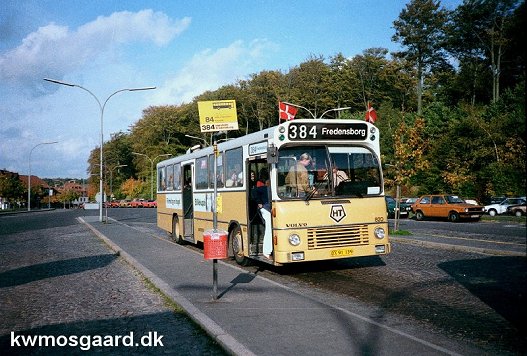

Volvo B58-60 - Aabenraa - Holte St., 14. oktober 1984.
foto: Kai W. Mosgaard ©



The Volvo B58 is a mid-engined bus chassis built by Volvo of Sweden from 1966 until early 1982. It replaced the shortlived Volvo B755 and was itself the forerunner to the highly successful Volvo B10M.

In the United Kingdom, it was sold to many major operators including Wallace Arnold and Park's of Hamilton. Many of the Volvo B58s in UK were built as coaches. Its main rival was the Leyland Leopard.

A special version of the B58 was produced in cooperation with swiss company Hess, in witch the diesel engine was exhanged with BBC electrics to become a trolleybus. Wellington in New Zealand also runs around 59 of these Volvo B58 trolleybuses. Originally with 68, some have been scrapped for spare parts & some have been preserved. As they are around 23 years old, they are in need of renewal and vital parts (traction motor, axles etc.) are being used combined with new parts to make new trolleybuses. 3 prototypes have already been made. (kilde: Wikipedia)



Volvo Logo





Tekniske Data:      Volvo B58 - produktion: 17.184 stk.

Årgang:

 1966 - 1980

Chassisnr.:

 -

Motor:

 Volvo D96AL/150 - THD100D/250 (midtmotor) 6-cyl. 9,6 l.

Ydelse:

150/250 HK (v/ 2.200 O/min.) ?? Nm

Gear:

 Manuel fuldsynkroniseret Volvo K191 5+1 gearkasse.  Alternativt halvautomatisk Wilson GB346/356 4/5+1 eller  fuldautomatisk ZF eller Allison gearkasse.

Topfart:

 80 km/t.*

Passagertal:

 ?? siddende og ?? stående passagerer.*

Længde:

 8.939***/9.396**** mm (chassis)

Bredde:

 2.500 * mm

Højde:

 - * mm (afhængig af karrosserimodel)

Akselafstand:

 B58-50 - 5.000 mm**, B58-55 - 5.500 mm
 B58-56 - 5.639 mm***, B58-60 - 6.000 mm
 B58-61 - 6.096 mm****, B58-65 - 6.500 mm
 Ledbusser: B58 "Hägglund" - 5.250 + 6.500 mm
                   B58 "Volvo" - 5.500 + 6.500 mm.

Styretøj:

 ZF hydraulisk drevet servostyring.

Bagaksel:

 Enkelt navreduktiosbagtøj (alternativt Eaton "2-speed"  bagtøj).

Affjedring:

 Mekanisk affjedring (bladfjedre) eller fuld luftaffjedring. 2  hydrauliske støddæmpere på hver aksel.

Frontoverhæng:

 2.000 mm

Bagoverhæng:

 1.300 mm

Vendediameter:

 18,3***/19,7**** m

Egenvægt:

 5.300***/5.345**** kg

Totalvægt:

 16.500 kg (ikke ledbusser)

Bremser:

 Selvjusterende to-kreds trykluftbremser. Motorbremse  standard. Trykluftaktiveret parkeringsbremse.

Dækstørrelse:

 11.00-20

   * = afhængig af specifikationer.
 ** = (afkortede B58-60 (bl.a. Aabenraa Karosserifabrik)).
*** = B58-56, **** = B58-61 (efter ønske).
