Bustype: Midtmotorbus

Volvo Bussar AB, Borås/Göteborg (S)/(A)/(GB)

Type:

B10M-55 Mk.IV

Årgang 1993 - 2001

Type:

B10M-60 Mk.IV

Årgang 1993 - 2001

Type:

B10M-62 Mk.IV

Årgang 1993 - 2001

Type:

B10M-65 Mk.IV

Årgang 1993 - 2001

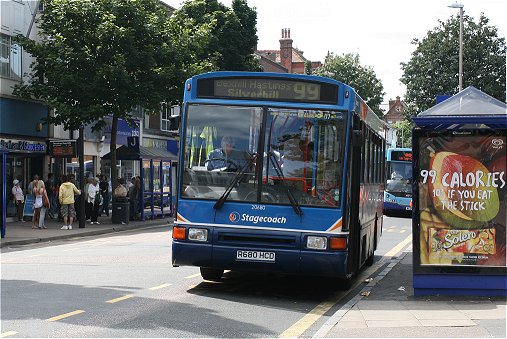

Foto: Eastbourne, 21-07-2008 - 15:03, R680 HDC (Hastings - 20680), Volvo B10M-55 - Plaxton (04-1998), Kai W. Mosgaard ©



The Volvo B10M is a popular mid-engined bus and coach chassis built by Volvo between 1978 and 2001. It was built as the successor of the B58 and was equipped with a 9.6-litre horizontally-mounted diesel engine which was placed under the floor between the two axles. Due to the low height of this engine, it is often nicknamed the 'pancake engine'. The Mk. IV version was the last development stage of that model. It differs mainly by having the radiator moved from the front to behind the frontwheel on the nearside (right-hand drive).

A large portion of B10M chassis was built in Sweden, but some chassis were built in other countries such as the United Kingdom, Brazil and China.

It was one of the most successful and reliable of all the buses built for the United Kingdom in the 1980s and 1990s. It started off as a coach chassis and found instant favour with Shearings, Wallace Arnold and Park's of Hamilton.

In the 1990s, Stagecoach standardised on the bus version of B10M as their full-size single decker and they are still going today. Most of them had Alexander PS bodies but some were delivered with Northern Counties Paladin bodywork. They also took numerous examples of the coach version with Plaxton's Interurban bodywork and Jonckheere's Modulo bodywork. South Yorkshire Transport (Mainline Buses) and Kelvin Central Buses (both companies are now subsidiaries of the First Group) also purchased large numbers of the type with Alexander PS bodies.

The coach version of B10M is also highly popular among UK coach operators, with hundreds of them seen on the motorway everyday.

Singapore Bus Services of Singapore has purchased a total of 967 units, making up a large part of its bus fleet. First delivered in 1988, they are bodied by Duple Metsec and Walter Alexander. A single 19m B10MA articulated bus (registered as SBS 998Y) has also been built, but it has since been sold to New Zealand in 2006.

From 1983 to 1986, The B10M was also made for use in the US at a Volvo plant in Chesapeake, Virginia. The American B10M was manufactured mostly in its articulated form (which was purchased by SEPTA, SamTrans, and New Jersey Transit) though a standard length B10M model was made for the RIPTA with one example going to SEPTA as compensation for delays. Canadian production of the B10M articulated under licence to Ontario Bus Industries nearly took place, however it fell through when that company negotiated a more favorable deal with Ikarus Bus.

The double-deck version of B10M, i.e. Citybus, was replaced by the Volvo Olympian in 1993. The B10M as a single-deck bus was supplanted by the low-floor rear-engined B10L and B10BLE chassis in some markets in the late 1990s. In 2001, the B10M was eventually replaced by the new Volvo B12M and Volvo B12B, both chassis sporting a larger 12-litre engine.

Sources: Volvo Bus & Coach Website

Volvo Logo





Tekniske Data:  Volvo B10M Mk.IV - produktion: - stk.

Årgang:

 1993 - 2001

Chassisnr.:

 -

Motor:

 Volvo D10A285 diesel (6-Cyl. midtmotor) 9, 8 liter

Ydelse:

 210 kW @ 2.000 O/min. - ?? Nm

Gear:

 Fuldautomatisk ZF eller Voith gear,
 alt. manulet 5-trins Volvo gear
.

Topfart:

 ?? km/t.*

Passagertal:

 ?? siddende og ?? stående passagerer.*

Længde:

 12.000 mm

Bredde:

 2.500 mm

Højde:

 - * mm

Akselafstand:

 5.500 mm, 6.000 mm, 6.200 mm, 6.500 mm

Vendediameter:

 - * m

Totalvægt:

 - * kg

Bremser:

 - 2-kreds trykluft - Elektronisk kontrollerede skivebremser. ABS med ASR + ESP (option).

* = afhængig af specifikationer.
- .

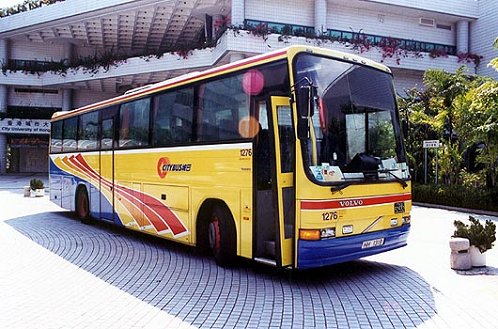

Volvo B10M Mk.IV, Since the Volvo B12s were delicensed on 28 March 2001, Citybus had to deploy its only two Xian bodied B10M's for a chartered service to Guangzhou on 30 March 2001. These buses have become the only Citybus left hand drive buses and Citybus buses that have permits to go to Guangzhou. If they are not chartered, they often serve Hong Kong International Airport - Shenzhen Airport shuttle bus route (operated by China Travel Agency).The photograph right show the exterior details of 1276 (HH1319),
  foto: Anthony Lui
